Touch Control Panel

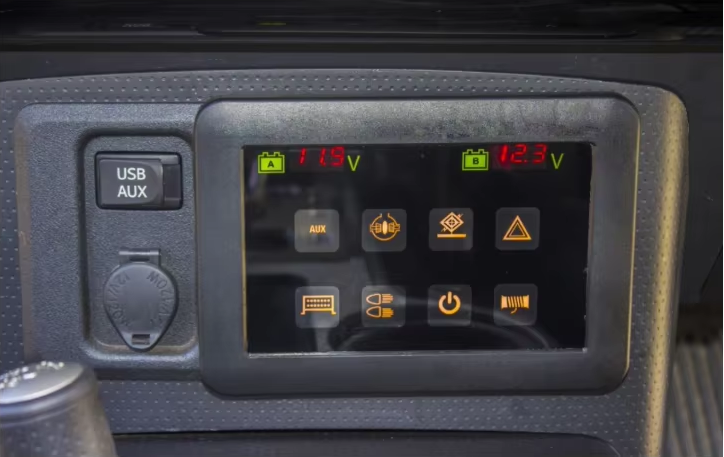

Camper van touch panel

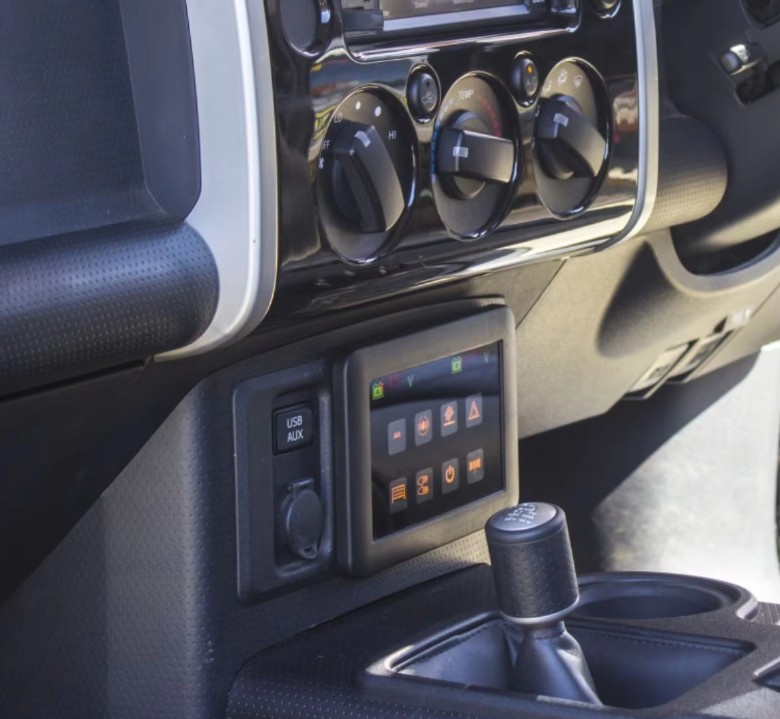

Ambulance Touch Control Panel
Van Surface Mounted Touch Control Panel:
8 way touch panel controller DC12V
20 Amps for circuit
30 Amps relay builtinto each 20Amps circuit
Single/Dual LCD voltage display
Standby Current: 230mA
Single Switch Rated Output Power: 240watt
Single Switch Rated Loading Power: 265watt
Switch Responce Time:<60ms
Temperature range: -20~60 centigrade
Feature:
Usage: Camper van, ambulance, universal vehicle control touch panel
Service: OEM function accepted
Splash proof display
Blue background means function is on, amber backlit means off
Size:119.50*169.50*70mm (HWD) ; Panel weight:1.3kg

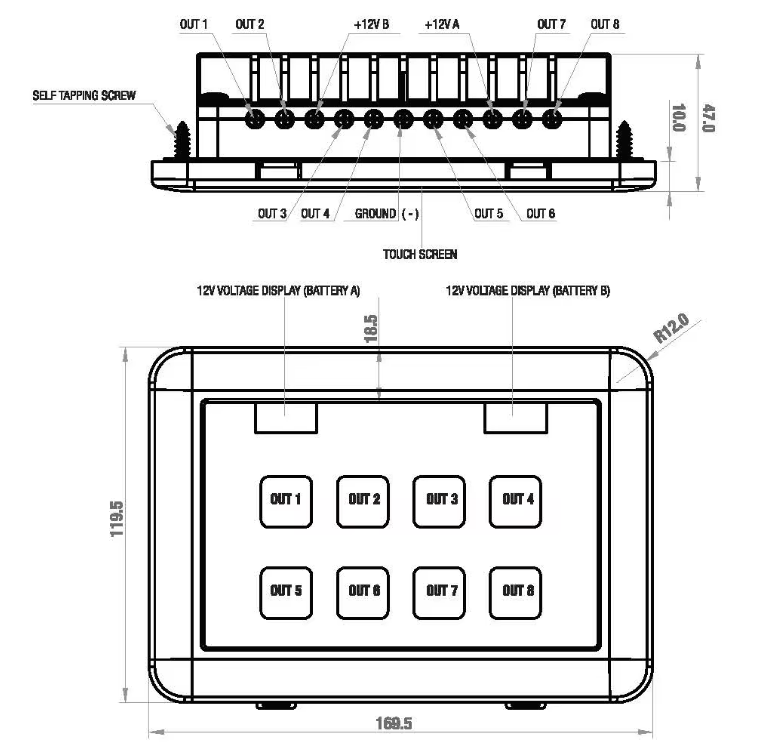

Drawing
Touch Control Panel
Other Control Panel for Vehicle
Application: Camper van, motorhome , ambulance, van driver control panel for light system
