2-Way Wired Intercom
Ambulance Intercom
Partition Wall Mounted Interphone
2 Way Wired Intercom Specification:
Module:T208W
Voltage: DC12V – DC24V
Stanby Current: 15mA
PA speaker power: 3watt 25ohm / each
Dimension for main box: 148*120*67mm( L*W*H)
Feature:
Usage: Vehicle, Ambulance, RV, Bus Inside Communition Wired walkie talkie
Mount: Vehicle partition wall surface mounted , Each side can trigger call to each side for commnication
One set: include two piece main box, two pieces of Microphone. Microphone has two option, fixed wire mic or removable plug-in type mic.
Connection: 4 core sheilding cable as option
Voice Volume: Adjustable voice volume with rotating switch
Indicator light: Power led indicator, Comunication status indicator light

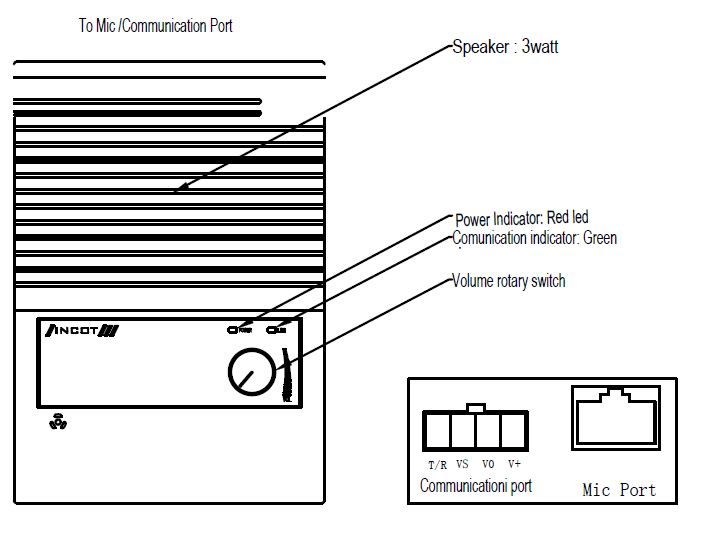

Intercom Drawing

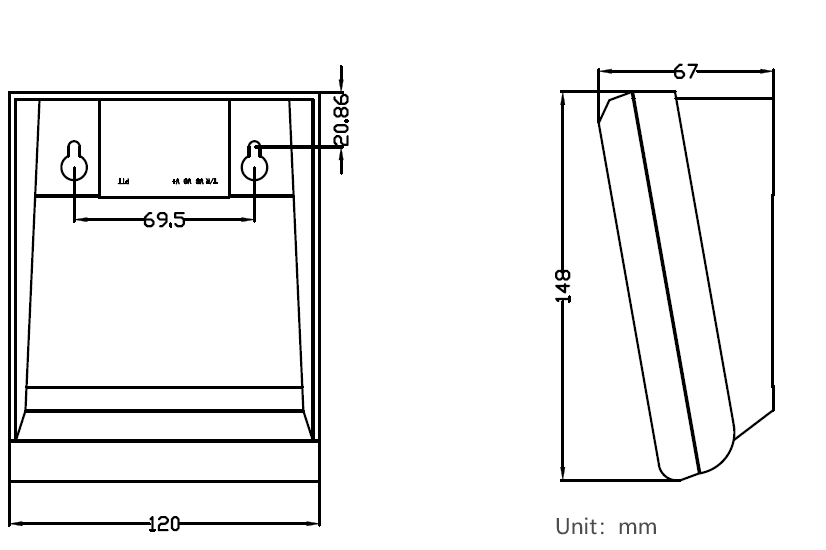

T2048W Intercom Dimension Drawing

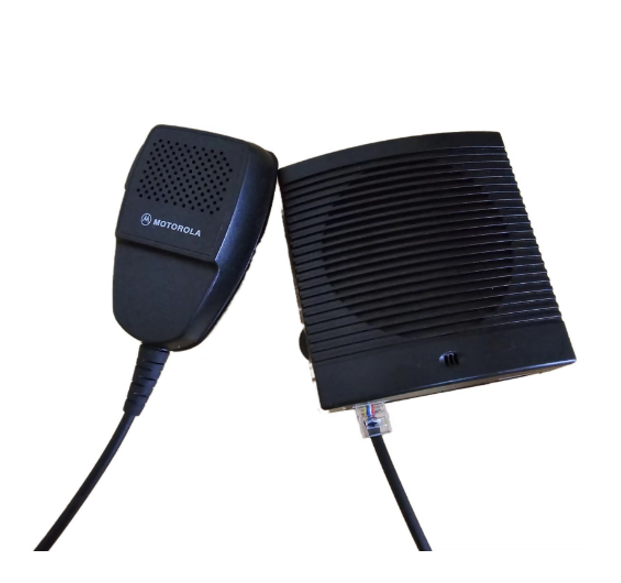

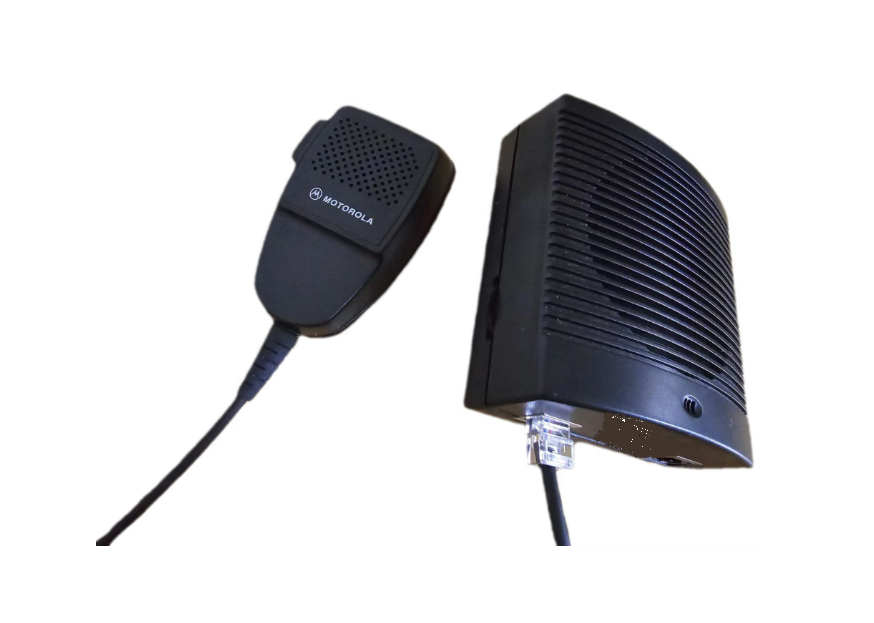

Module: T104N Intercom(Compact Version)
Compact Size Ambulance Intercom , Space Save
Volume Control: Thumbwheel at side of body to adjust volume
Module:T2048W Ambulance Intercom Inside Comminication

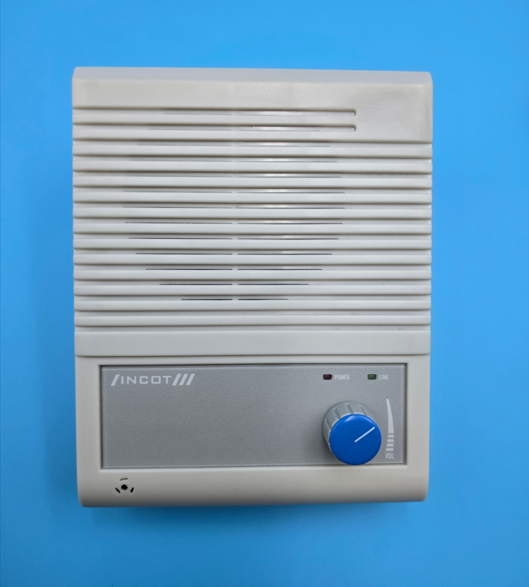

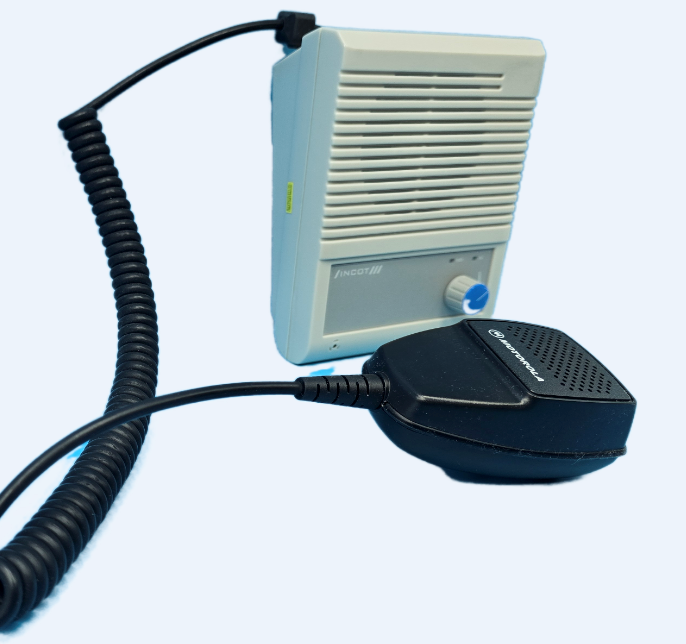

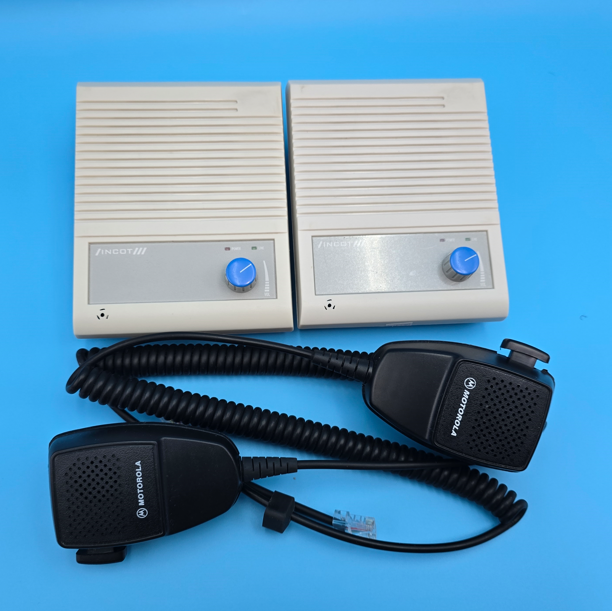

Intercom T2048 Photo gallery as below:
